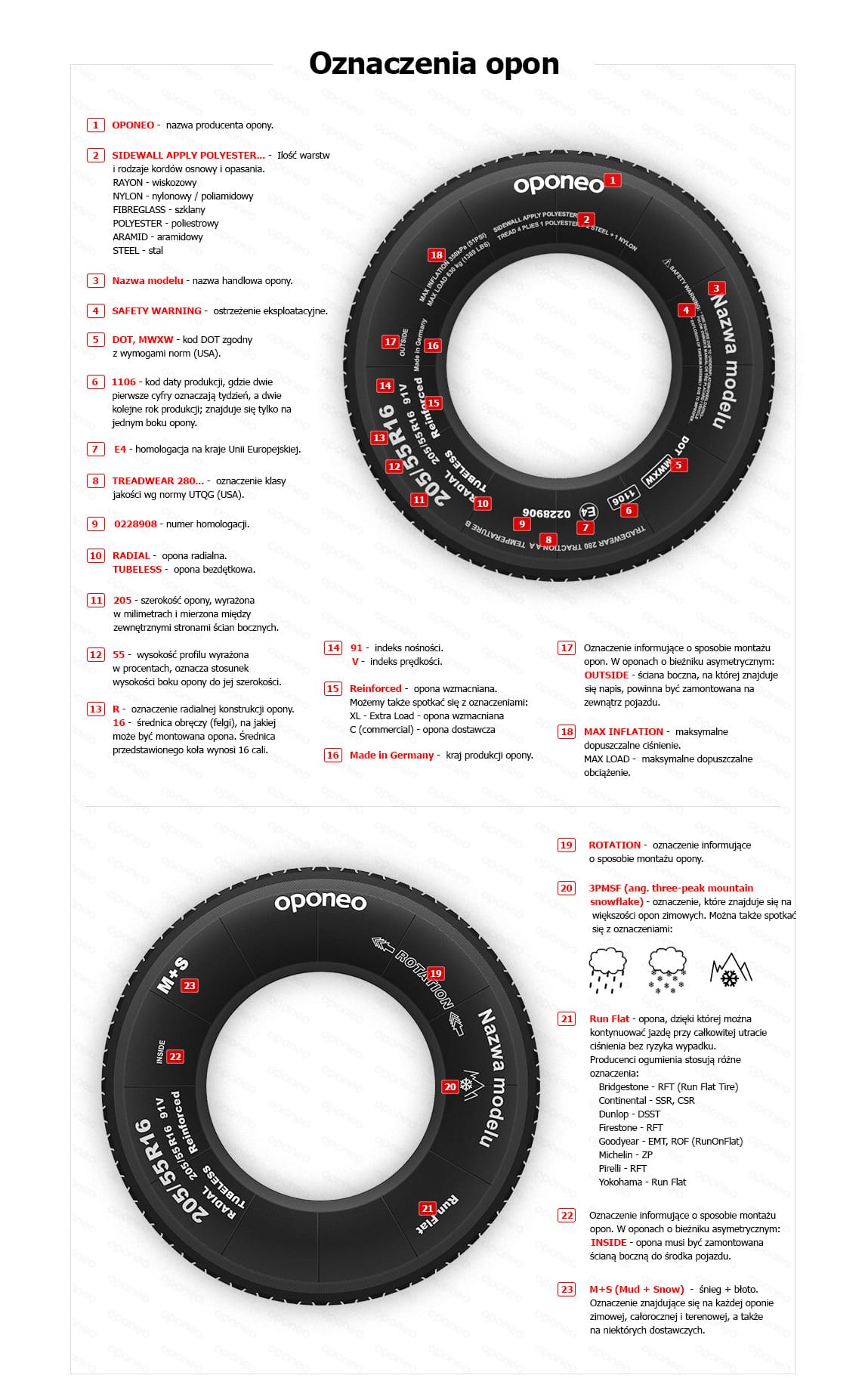

Tyre Markings

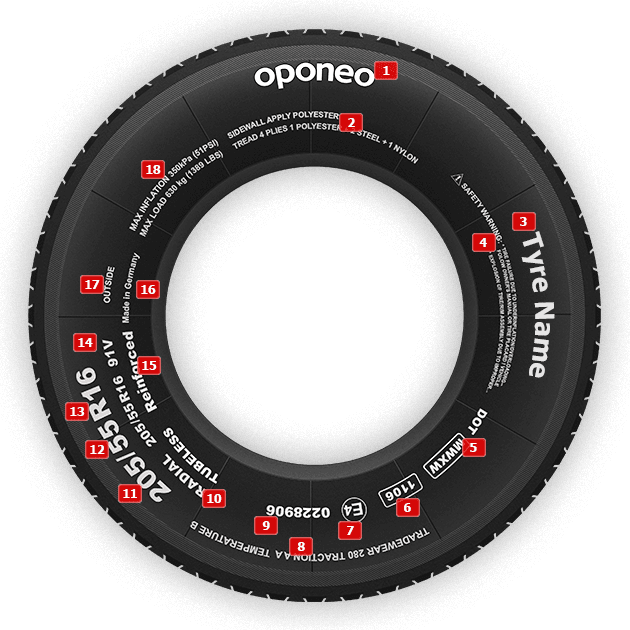

manufacturer of tyres Tyre 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Tyre
  • 1
    OPONEO - manufacturer of tyres
  • 2
    SIDEWALL APPLY POLYESTER... : - Number of layers and type of carcass and belt.
    RAYON
    NYLON - nylon / polyamide
    FIBREGLASS
    POLYESTER
    ARAMID
    STEEL
  • 3
    Tyre Name - commercial name of tyres
  • 4
    SAFETY WARNING - SAFETY WARNING
  • 5
    DOT, MWXW - DOT code in compliance with requirements of the norm (USA)
  • 6
    1106 - production date, where the first two digits indicate the week and the next two indicate the year. This is found only on one side of the tyre
  • 7
    E4 - European Union homologation
  • 8
    TREADWEAR 280... - quality classification according to UTQG (USA)
  • 9
    0228908 - homologation number
  • 10
    RADIAL - radial
    TUBELESS - tubeless
  • 11
    205 - width of tyre in millimeters and measured between the external side walls
  • 12
    55 - profile in percentage. Indicates the ratio of the height to the width
  • 13
    R - means radial construction
    16 - diameter of wheel rim, where the tyre may be fixed. The diameter of the wheel presented equals 16 inches
  • 14
    91 - Load index
    V - Speed index
  • 15
    Reinforced - We can also find markings:
    XL – Extra Load
    C - Commercial
  • 16
    Made in Germany - Country of manufacture of the tyre
  • 17
    Tyre fitting information. For tyres with assimetric treads:
    OUTSIDE - the tyres should be fitted such that the side with the symbol is outsider
  • 18
    MAX INFLATION - maximum pressure allowed
    MAX LOAD - maximum load allowed

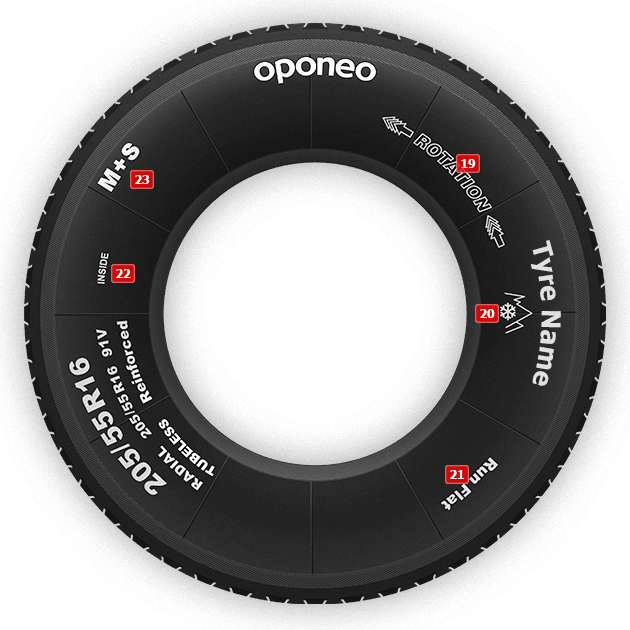

Tyre 19 20 21 22 23
Tyre
  • 19
    ROTATION - tyre fitting information
  • 20
    3PMSF (ang./ three-peak mountain snowflakes) - Marking found on most winter tyres. We can also come across markings like

  • 21
    Run Flat - tyre allows for driving when completely deflated without the risk of an accident. Manufacturers use different markings:
    Bridgestone - RFT (Run Flat Tire)
    Continental - SSR, CSR
    Dunlop – DSST
    Firestone – RFT
    Goodyear - EMT, ROF (RunOnFlat)
    Michelin – ZP
    Pirelli – RFT
    Yokohama - Run Flat
  • 22
    Tyre fitting information. In tyres with asymmetric treads
    INSIDE - the tyre should be fitted such that the side with the marking is inside
  • 23
    M+S (Mud + Snow) - marking found on every winter, all season and SUV tyres as well as in some tyres for delivery vehicles
